환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트

환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트

원래 장소:

양저우, 치안스, 중국

브랜드 이름:

FEIHANG

인증:

Factory certificate, test report, material report

모델 번호:

FH

문의하기

조회를 요청하다
제품 상세정보
상품 이름:
에어 벤트 헤드 디스크 플로트 유형, 플로터 플레이트
설계 표준:
공급된 그림으로 가공처리하기
재료:
스테인레스 강
사이즈:
비 표준 특화
표면 처리:
스테인레스 강 자연색
내부:
공동
선택적 정합:
고무 패킹, 가이드 바
색:
스테인레스 강 자연색
애플리케이션:
에어 파이프 헤드 내부
온도:
표준 온도
중량:
경량
지불과 운송 용어
최소 주문 수량
1PCS
가격
Discuss personally
포장 세부 사항
수출 패키징
배달 시간
1-2days
지불 조건
선불한 100%
공급 능력
100PCS/일
제품 설명

Stainless Steel Floater For Air Vent Head Made In China Jiangsu Yangzhou Feihang Ship Accessories Factory

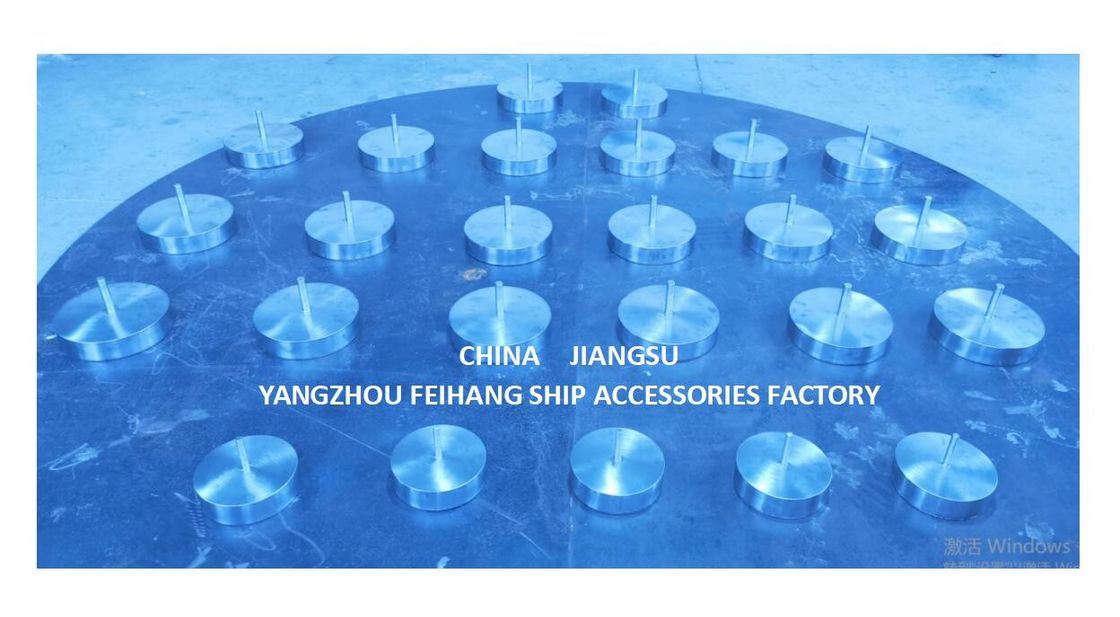

환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트 0



Product Description For Floater:

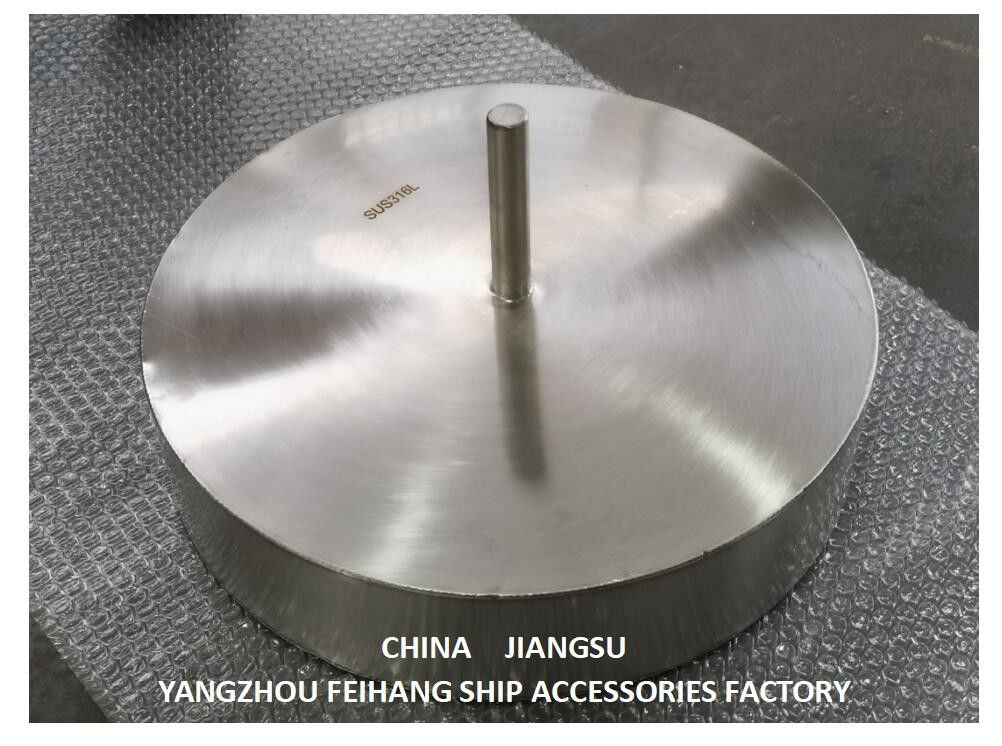

환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트 1

Floater for Apt Ballast Air Vent Head

A floater is a device that is installed around a ship's ballast air vent head, in order to keep it afloat during sea travel.

The floater for apt ballast air vent head is made by China's Jiangsu Yangzhou Feihang Ship Accessories Factory. This high-quality floater is made from stainless steel, giving it a long-lasting performance.

Float Disc for Aft Ballast Air Vent Head

The floater for aft ballast air vent head must be able to maintain its buoyancy during rough seas. For this purpose, the floater is made from high-grade stainless steel. It is also designed to be resistant to corrosion, making it ideal for use in maritime environments.

Float Plat for Wbt Ballast Air Vent Head

The floater for Wbt ballast air vent head must be strong and sturdy to ensure its effectiveness. This floater is made from superior grade stainless steel, ensuring its durability. It is also designed to be resistant to the elements, making it perfectly suited for use in maritime settings.

Floater for Maf Ballast Air Vent Head

The floater for Maf ballast air vent head is designed to be corrosion resistant. It is constructed from high-grade stainless steel that is strong and durable, making it suitable for use in maritime environments. The floater also features a special breathable cap, which allows for maximum buoyancy.



Features For Floating Disc:

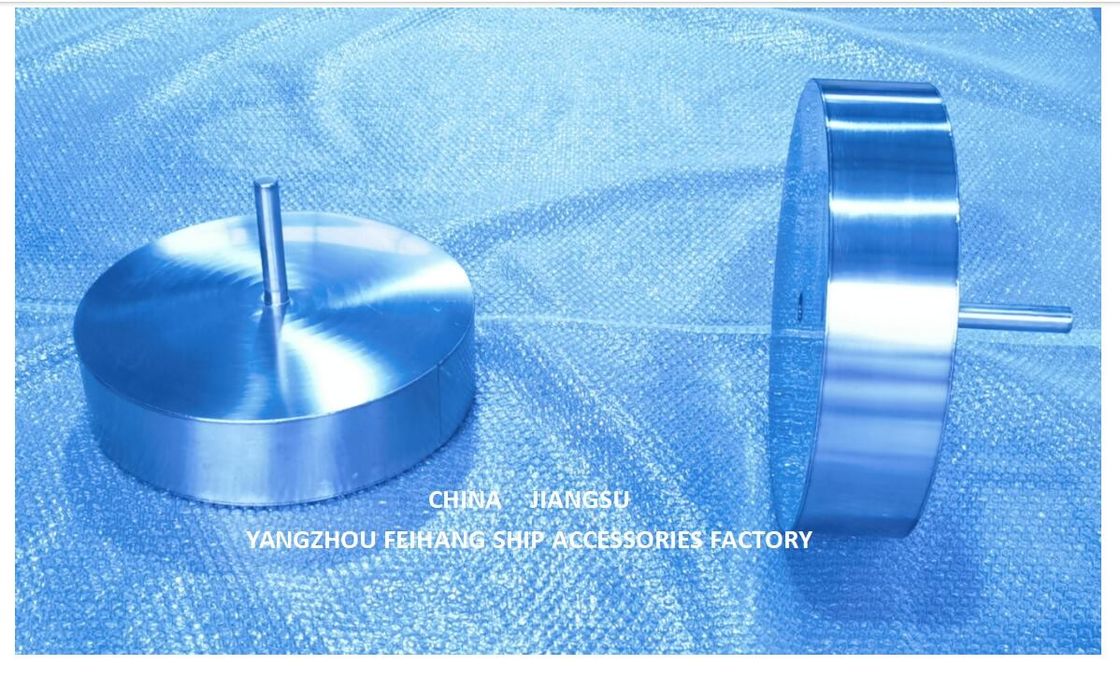

환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트 2



Marine  breathable cap float, ballast tank breathable cap float, breathable cap float, ventilation head float, exhaust head float, air pipe head float are mainly used under harsh external environment of ships. When sea water or rainwater enters the air cap and cannot be drained in time, the breathable cap float/breathable cap float will be lifted.

Once the float is elevated, it will automatically expand and make contact with the sealing seat. Thus, it can effectively prevent water from entering the air/overflow pipe and delay the flow into the tank. When the condition of the ship returns to normal, the float will come back to its original position, enabling the ventilation/suction function to go back to work.



Technical Parameters  For BREATHABLE CAP FLOATER:

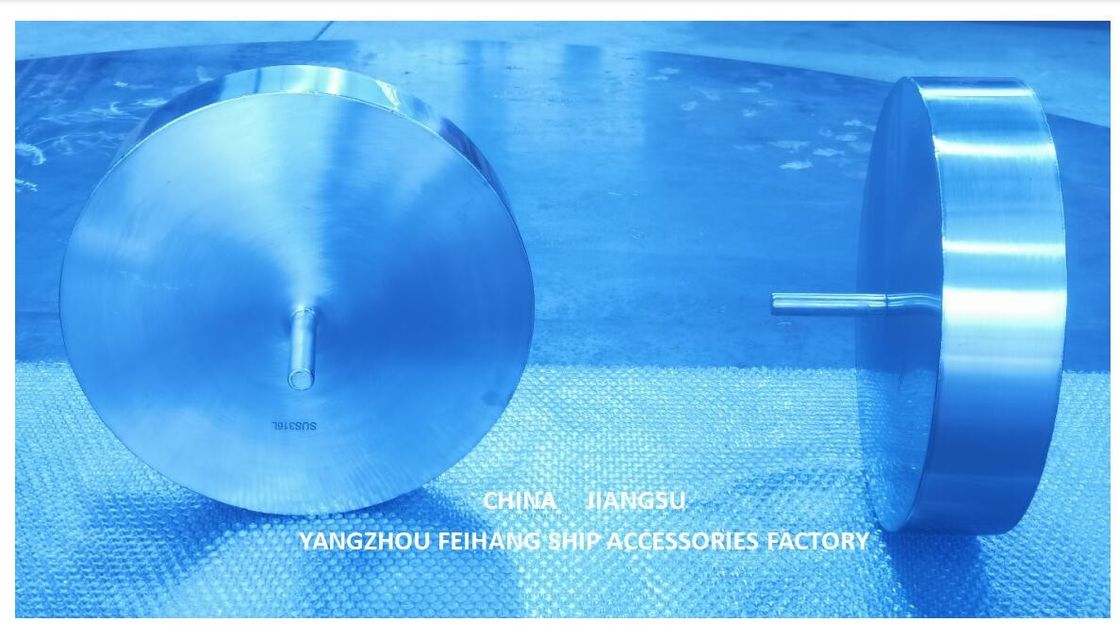

환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트 3

Name Specs
Product Name Air Vent Head Disc Float Type
Pressure 0.3Mpa
Size Non Standard Customization
Type Float Disc
Material Stainless Steel
Temperature Standard Temperature
Shape Disc
Color Stainless Steel Natural Color
Features High Quality
Application Inside The Air Pipe Head
Keywords Breathable Cap Floating Plate, Stainless Steel Floater for Air Vent Head, Breathable Cap Floating Plate


Applications AIR VENT HEAD FLOATER:

환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트 4

The Air Vent Head Disc Float Type is a uniquely designed product manufactured by FEIHANG. It is designed to be used inside the air pipe head. This stainless steel floating disk is available with a natural color stainless steel surface treatment, and it stands up to standard temperature. This product is certified by the factory, complete with a test report and material report.

The Air Vent Head Disc Float Type is available with a minimum order quantity of 1 piece and is delivered within 1-2 days. It is packaged with export packaging for safe delivery. Payment terms are 100% prepaid, and the price is negotiable. FEIHANG has a supply capacity of 100 pieces per day.



Customization FLOATING DISK FOR BALLAST VENT HEAD:

환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트 5

Air Vent Head Disc Float Type
  • Brand Name: FEIHANG
  • Model Number: FH
  • Place of Origin: Yangzhou, Jiangsu, China
  • Certification: Factory certificate, test report, material report
  • Minimum Order Quantity: 1pcs
  • Price: Discuss personally
  • Packaging Details: Export packaging
  • Delivery Time: 1-2days
  • Payment Terms: 100% prepaid
  • Supply Ability: 100pcs/days
  • Weight: Lightweight
  • Temperature: Standard Temperature
  • Size: Non Standard Customization
  • Type: Float Disc
  • Shape: Disc
  • Keywords:BREATHABLE CAP FLOATING PLATE, STAINLESS STEEL FLOATER FOR AIR VENT HEAD , BREATHABLE CAP FLOATING PLATE DISC FLOAT TYPE


Support and Services Stainless steel floating disk for air vent head:

환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트 6

Air Vent Head Disc Float Type provides technical support and service for all customers.

We are committed to providing comprehensive technical support and service to ensure that customers can get the most out of the product.

We provide a wide range of services to meet customer needs, including product installation, troubleshooting, product maintenance and repair, product upgrades, and more.

We also provide customer support via phone, email and online chat. Our customer service representatives are available 24/7 to answer any questions. Our team of experienced technicians can help you troubleshoot any issue and provide the necessary support.

If you have any questions or concerns, please do not hesitate to contact us. We are here to help you get the most out of your Air Vent Head Disc Float Type product.



Packing and Shipping float disc for air vent head:

환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트 7

Packaging and Shipping for Air Vent Head Disc Float Type
  • The Air Vent Head Disc Float Type will be packaged in a cardboard box
  • The Air Vent Head Disc Float Type will be shipped via UPS or FedEx
  • The Air Vent Head Disc Float Type will be shipped in a timely manner
  • The Air Vent Head Disc Float Type will be shipped with tracking information provided


FAQ:

환기 머리 ES200A CB/T3594를 위한 안정기 배출구 머리 533HFB-200A 부유물 디스크를 위한 플로터 플레이트 8

Q: What is the brand name of this product?
A: The brand name of this product is FEIHANG.
Q: What is the model number of this product?
A: The model number of this product is FH.
Q: Where is this product manufactured?
A: This product is manufactured in Yangzhou, Jiangsu, China.
Q: What certifications does this product have?
A: This product has Factory certificate, test report, material report.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1pcs.
